OD142 Wound Field AF Series

Name: OD142 Wound Field AF Series
Brand: 江苏梦阳电机制造有限公司

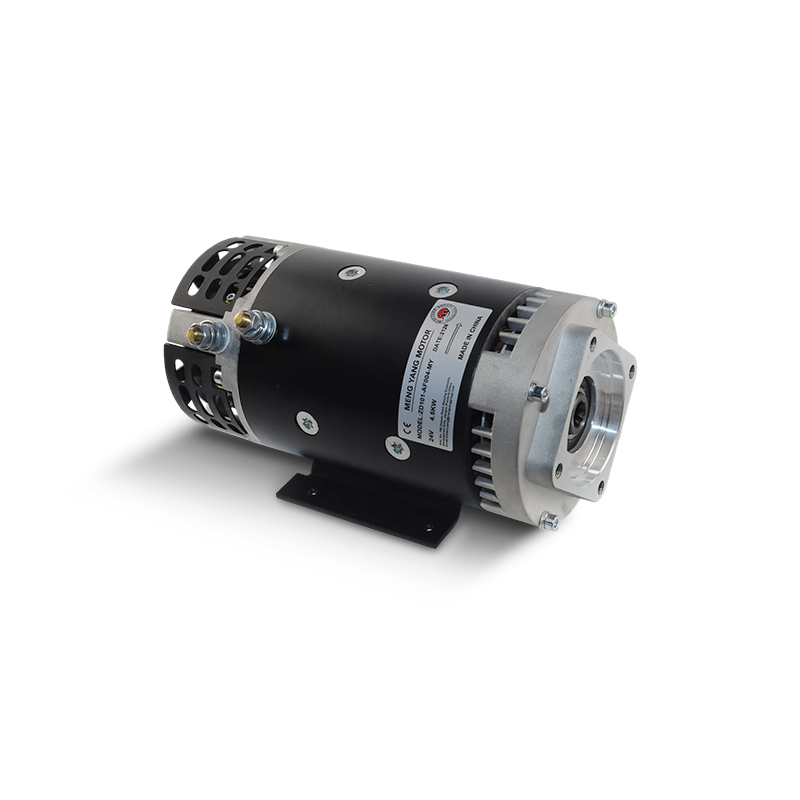

Description：OD142 is a wound field DC motor with 142mm outer diameter, heavy‑duty industrial grade. It features robust round housing, flange mounting and forced cooling design for continuous heavy‑load operation.

Features：
Rated voltage: 24/48V DC
Power range: 3300W–4500W, ultra‑high starting torque
Stable torque under heavy load, good overload resistance
Wide speed adjustment range, suitable for long‑time continuous operation
IP54 protection, high mechanical strength & durability
Ideal for electric forklifts, industrial vehicles, heavy‑duty machinery and large‑power automation equipment.

Application：Power Pack Unit，Aerial Work Platform

联系我们

上一篇：OD151.5 Wound Field CE Series 下一篇：OD78 PM AA Series

电机数据和模型联系我们

Motor Data		Motor Model
Motor Data		ZD100	ZD101	ZD065
Nominal Power	kW	3.3	4.5	4.5
Nominal Voltage	V	24	24	48
Environmental Tempeature	°C	-20-40°C	-20-40°C	-20-40°C
No-load Speed	Rpm	6800	7000	6800
No-load Current	A	35	40	20
Nominal Torque	N.m	10	17	17
Nominal Speed	Rpm	2900	2550	2550
Nominal Current	A	160	240	110
Duty Cycle	S2	20MIN	15MIN	15MIN
Duty Cycle	S3	35%ED	30%ED	30%ED
Motor Rotation	CW/CCW	CCW	CW	CW
Motor Noice	dBA/1m	90	90	90

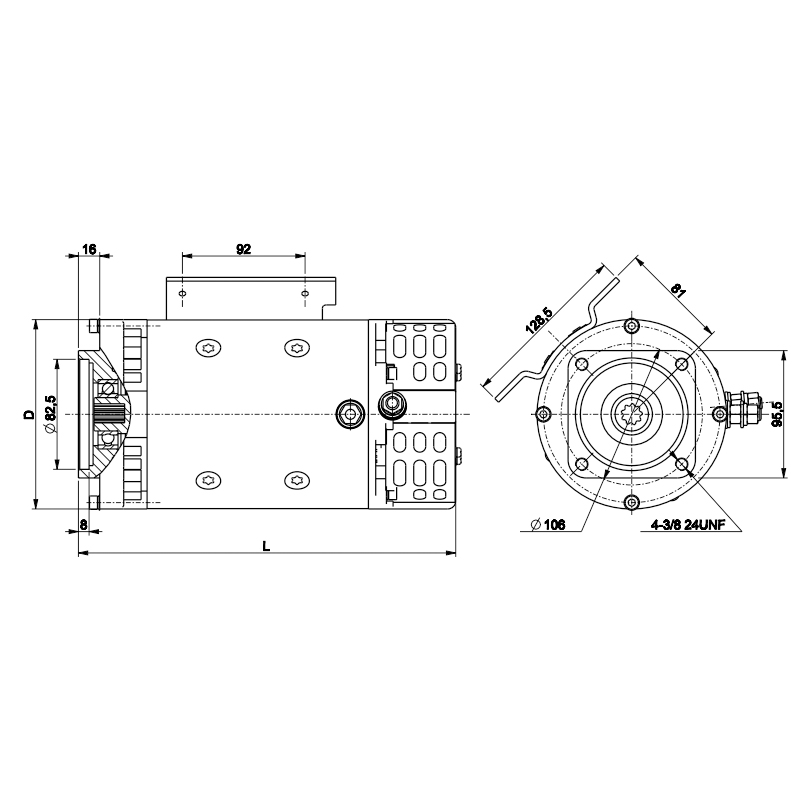

Motor size	L（mm）	283	283	283
Motor size	D（mm）	142	142	142
Motor Weight	Kg	19.5	16.8	16.8
Motor Design
Motor Design
Insulation Degree	Class	H	H	H
Thermal Protection	Optional	✅	✅	✅
IP Class	Class	IP23	IP23	IP23
Excitation	Wound	Series	Series	Series
Vibration	mm/S	<5	<5	<5
Insulation Resistance	MΩ	>10	>10	>10
Motor Endurance	Hrs	800	800	800
