OD151.5 Wound Field CE Series

Name: OD151.5 Wound Field CE Series
Brand: 江苏梦阳电机制造有限公司

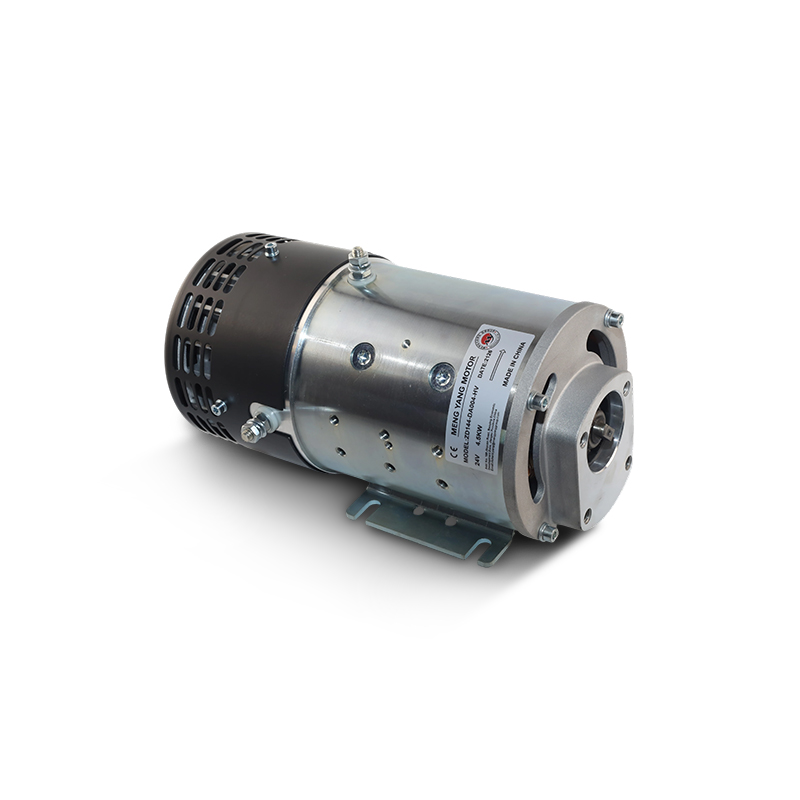

Description：OD151.5 is a heavy‑duty industrial excited DC motor with 151.5mm outer diameter. It adopts sturdy round housing and flange mounting, designed for continuous high‑load operation with efficient heat dissipation.

Features：Rated voltage: 24/48V DC
Power range: 3000W–4500W, extremely high starting torque
Stable torque output under heavy load, outstanding overload resistance
Wide speed regulation range, suitable for long‑time continuous running
IP54 protection grade, high mechanical strength and durability
Widely used in electric forklifts, industrial vehicles, heavy‑duty machinery and high‑power automation equipment

Application：Large Tail Plate Power Unit，Aerial Work Platform

联系我们

上一篇：没有上一个产品下一篇：OD142 Wound Field AF Series

电机数据和模型联系我们

Motor Data		Motor Model
Motor Data		ZD144	ZD145
Nominal Power	kW	4.5	3
Nominal Voltage	V	24	48
Environmental Tempeature	°C	-20-40°C	-20-40°C
No-load Speed	Rpm	7000	4500
No-load Current	A	50	35
Nominal Torque	N.m	20	7.3
Nominal Speed	Rpm	2000	3900
Nominal Current	A	265	85
Duty Cycle	S2	4.5MIN	10MIN
Duty Cycle	S3	12%ED	20%ED
Motor Rotation	CW/CCW	CW	CW
Motor Noice	dBA/1m	82	90

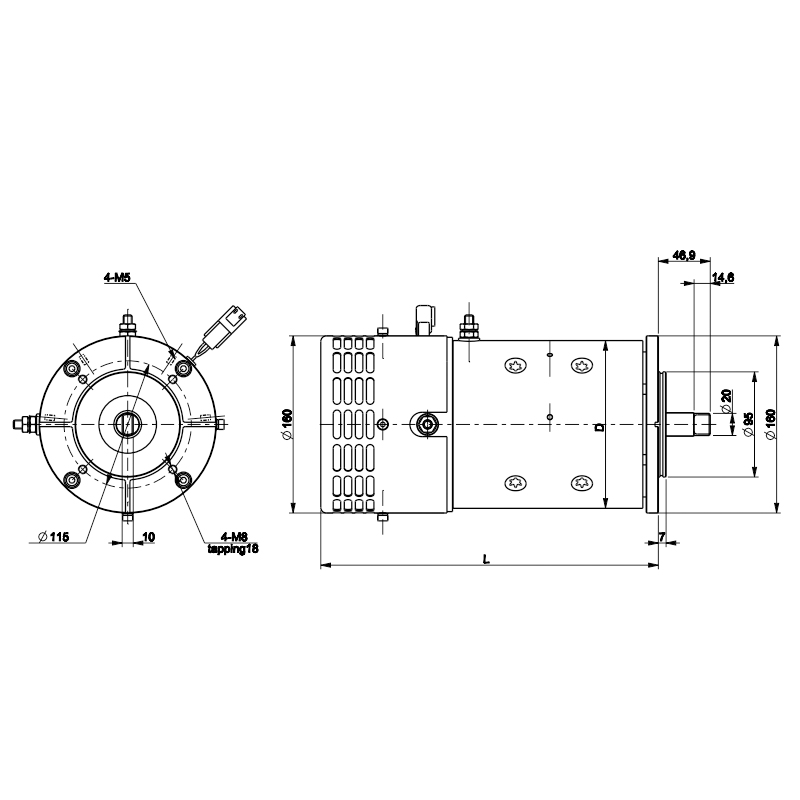

Motor size	L（mm）	311	305
Motor size	D（mm）	151.5	151.5
Motor Weight	Kg	17.5	17.5
Motor Design
Motor Design
Insulation Degree	Class	F	F
Thermal Protection	Optional	✅	✅
IP Class	Class	IP21	IP21
Excitation	Wound	Series	Series
Vibration	mm/S	<5	<5
Insulation Resistance	MΩ	>10	>10
Motor Endurance	Hrs	800	800
