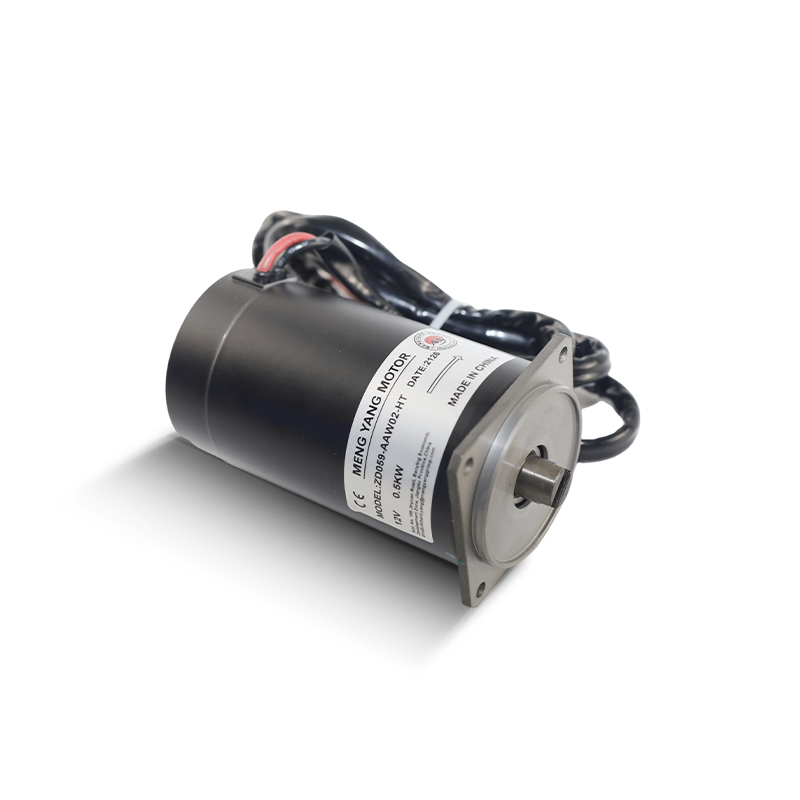

OD78 PM AA Series

Name: OD78 PM AA Series
Brand: 江苏梦阳电机制造有限公司

Description：OD78 is a compact permanent‑magnet DC motor with 78mm outer diameter.
It adopts round frame and flange mounting, available in brushed / brushless types with natural cooling.

Features：
1.Rated voltage: 12/24/36V DC
2.Power: 300–500W, high starting torque
3.Wide speed regulation, stable low‑speed performance
4.IP44‑IP54 protection, long service life
5.Compact, cost‑effective, easy control

Application：Power Pack Unit，Actuator

联系我们

上一篇：OD142 Wound Field AF Series 下一篇：OD114 Wound Field HP Series

电机数据和模型联系我们

Motor Data		Motor Model
Motor Data		ZD109	ZD059	ZD110	ZD060	ZD111
Nominal Power	kW	0.3	0.5	0.3	0.5	0.3
Nominal Voltage	V	12	12	24	24	36
Environmental Tempeature	°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C
No-load Speed	Rpm	4200	3800	3500	4000	4200
No-load Current	A	3	7	1.5	4	1
Nominal Torque	N.m	1	1.2	1	1.2	1.4
Nominal Speed	Rpm	2000	2600	2000	2800	2600
Nominal Current	A	42	50	20	25	20
Duty Cycle	S2	2MIN	5MIN	1.5MIN	10MIN	5MIN
Duty Cycle	S3	10%ED	10%ED	10%ED	20%ED	10%ED
Motor Rotation	CW/CCW	CW/CCW	CW	CW	CW	CW
Motor Noice	dBA/1m	56	56	56	56	56

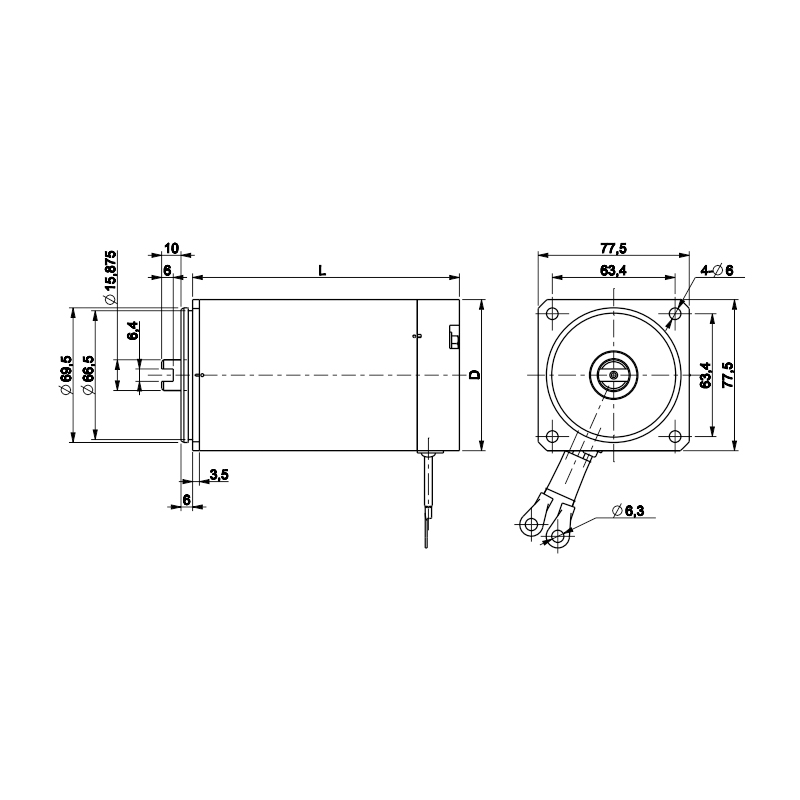

Motor size	L（mm）	122	138	122	138	122
Motor size	D（mm）	78	78	78	78	78
Motor Weight	Kg	2.1	2.4	2.1	2.4	2.1
Motor Design
Motor Design
Insulation Degree	Class	F	F	F	F	F
Thermal Protection	Optional	✅	✅	✅	✅	✅
IP Class	Class	IP67	IP67	IP67	IP67	IP67
Excitation	Wound	PM	PM	PM	PM	PM
Vibration	mm/S	<1.3	<1.3	<1.3	<1.3	<1.3
Insulation Resistance	MΩ	>10	>10	>10	>10	>10
Motor Endurance	Hrs	400	400	400	400	400
