OD192 Wound Field LG Series

Name: OD192 Wound Field LG Series
Brand: 江苏梦阳电机制造有限公司

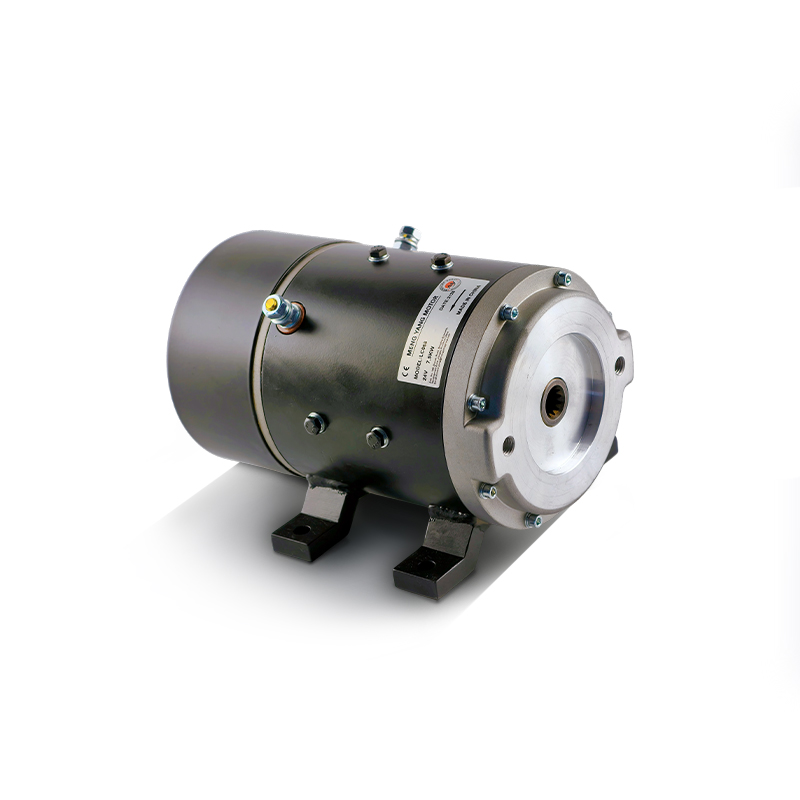

Description：OD192 is a heavy‑duty industrial excited DC motor with 192mm outer diameter. It features robust round housing and flange mounting, engineered for long‑term continuous high‑load operation with excellent heat dissipation.

Features：
Rated voltage: 24/48V DC
Power range: 5500W–7500W, ultra‑high starting torque
Stable heavy‑load performance and strong overload capacity
Wide speed regulation, suitable for heavy‑duty continuous running
IP54 protection, high mechanical rigidity and long service life
Ideal for heavy‑duty electric vehicles, large forklifts, engineering machinery and high‑power industrial equipment

Application：Counter-balance Forklift Motor

联系我们

上一篇：OD130 PM Series Controller Integrated Motor 下一篇：OD240 Wound Field ZL Series

电机数据和模型联系我们

Motor Data		Motor Model
Motor Data		LC054	LC068	LC049
Nominal Power	kW	5.5	7.5	5.5
Nominal Voltage	V	24	24	48
Environmental Tempeature	°C	-20-40°C	-20-40°C	-20-40°C
No-load Speed	Rpm	5000	6500	5500
No-load Current	A	55	85	30
Nominal Torque	N.m	25	27	25
Nominal Speed	Rpm	1800	2600	2100
Nominal Current	A	250	420	150
Duty Cycle	S2	15MIN	6MIN	15MIN
Duty Cycle	S3	25%ED	15%ED	25%ED
Motor Rotation	CW/CCW	CCW	CCW	CCW
Motor Noice	dBA/1m	90	82	90

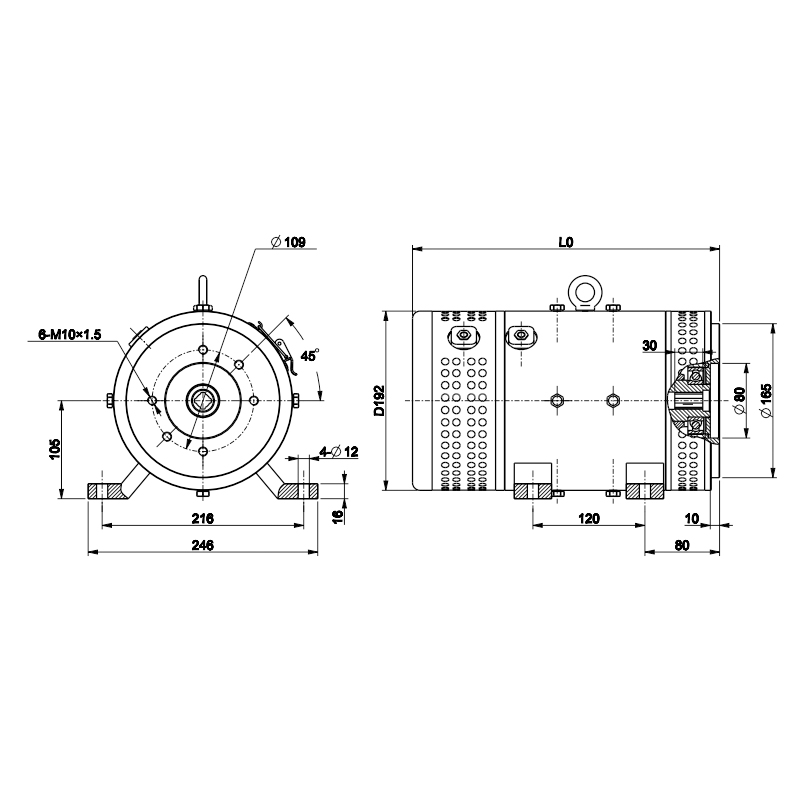

Motor size	L（mm）	329	313	329
Motor size	D（mm）	192	192	192
Motor Weight	Kg	44	36	44
Motor Design
Motor Design
Insulation Degree	Class	H	H	H
Thermal Protection	Optional	✅	✅	✅
IP Class	Class	IP20	IP65	IP20
Excitation	Wound	Series	Series	Series
Vibration	mm/S	<5	<5	<5
Insulation Resistance	MΩ	>20	>20	>20
Motor Endurance	Hrs	800	800	800
